前端：nginx(fastcgi反代)，IP地址192.168.206.11；
后端：httpd、PHP-fpm，接收php动态资源解释，IP地址192.168.206.22；
后端：nginx(web)，接收静态资源访问，IP地址为192.168.206.33；
架构图：
ngx_proxy_module
|---------------------- nginx
| (IP:192.168.206.33)
|
前端nginx(反向代理) ---------->|
(IP:192.168.206.11) |
| ngx_fastcgi_module
|---------------------- php-fpm、mariadb
(IP:192.168.206.22)
1、前端nginx反代配置（192.168.206.11）：
=======================================
nginx反代主配置文件：
—————————-
user nginx;
worker_processes 1;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;
events {
worker_connections 1024;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
#启用http反向代理，缓存配置；
proxy_cache_path /data/nginx/cache levels=1:1:1 keys_zone=pcache:10m max_size=2g inactive=10m;
proxy_connect_timeout 30s;
proxy_read_timeout 30s;
proxy_send_timeout 30s;
proxy_headers_hash_max_size 5120;
proxy_headers_hash_bucket_size 640;
#启用fastcgi反向代理，缓存配置；
fastcgi_cache_path /data/nginx/fastcgicache levels=1:2:1 keys_zone=fcgicache:10m max_size=2g inactive=10m;
sendfile on;
#tcp_nopush on;
keepalive_timeout 65;
gzip on;
gzip_comp_level 1;
gzip_min_length 100k;
gzip_buffers 16 8k;
gzip_proxied off;
#gzip_proxied no-cache no-store private;
gzip_types text/css text/xml application/javascript;
server_tokens off;
include /etc/nginx/conf.d/*.conf;
}
vhost配置：
————————
server {
listen 8011;
server_name abc.node1.com;
root /data/nginxweb;
index index.html index.php;
location / {
proxy_pass http://192.168.206.33:80;
proxy_cache pcache;
proxy_cache_key $request_uri;
proxy_cache_methods GET HEAD;
proxy_cache_min_uses 2;
proxy_cache_valid 200 302 10m;
proxy_cache_valid 301 1h;
proxy_cache_use_stale http_502;
}
location ~* \.php$ {
fastcgi_pass 192.168.206.22:9000;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME /data/apps/$fastcgi_script_name;
include fastcgi_params;
fastcgi_keep_conn on;
fastcgi_cache fcgicache;
fastcgi_cache_key $request_uri;
fastcgi_cache_methods GET HEAD;
fastcgi_cache_min_uses 2;
fastcgi_cache_valid 200 302 10m;
fastcgi_cache_valid 301 1h;
fastcgi_cache_use_stale http_503;
}
}
2、后端php-fpm配置（192.168.206.22）：
======================================
vim /etc/php-fpm.d/www.conf
——————————–
user = nginx group = nginx listen = 0.0.0.0:9000 listen.allowed_clients = 192.168.206.11
创建PHP会话缓存目录；
————————
mkdir /var/lib/php/session chown -R nginx.nginx /var/lib/php/session
解压PHPmyadmin到/data/apps目录下面，并创建软连接；
————————————————-
[root@node2 apps]# pwd /data/apps [root@node2 apps]# [root@node2 apps]# ll total 12 -rw-r--r-- 1 root root 62 Jun 20 13:12 index.php drwxr-xr-x 12 root root 4096 Jun 20 12:23 phpMyAdmin-4.8.1-all-languages lrwxrwxrwx 1 root root 30 Jun 20 13:23 pma -> phpMyAdmin-4.8.1-all-languages [root@node2 apps]#
进入pma目录，做如下配置：
———————————
cp config.sample.inc.php config.inc.php vim config.inc.php #添加随机字符串'ouewj09jdJLKDF'； $cfg['blowfish_secret'] = 'ouewj09jdJLKDF'; /* YOU MUST FILL IN THIS FOR COOKIE AUTH! */
3、后端nginx(web)，192.168.206.33配置；
=====================================
解压PHPmyadmin到/data/apps目录下面，并创建软连接；
————————————————-
[root@node0 webroot]# pwd /data/webroot [root@node0 webroot]# ll total 10320 -rw-r--r-- 1 root root 26 Jun 19 20:47 index.html drwxr-xr-x 12 root root 4096 May 24 22:46 phpMyAdmin-4.8.1-all-languages -rw-r--r-- 1 root root 10552094 Jun 20 13:46 phpMyAdmin-4.8.1-all-languages.zip lrwxrwxrwx 1 root root 30 Jun 20 13:47 pma -> phpMyAdmin-4.8.1-all-languages [root@node0 webroot]#
vhost配置：
—————————
server {
listen 80;
server_name 192.168.206.33;
#定义root、index;
location / {
root /data/webroot;
index index.html index.htm;
}
#禁止IP地址访问，只允许通过制定域名访问web;
#if ($host != 'lucifer.kouyuushinn.cn') {
# rewrite /.* http://lucifer.kouyuushinn.cn permanent;
# rewrite_log off;
# }
#图片类防盗链;
#location ~* ^.+\.(gif|jpg|png|swf|flv|rar|zip|doc|pdf|gz|bz2|jpeg|bmp|xls)$ {
# expires 7d;
# valid_referers none blocked server_names *.kouyuushinn.cn;
# if ($invalid_referer) {
# return 403;
# #rewrite ^/ http://lucifer.kouyuushinn.cn;
#}
#}
#字符集设置；
#charset koi8-r;
#访问日志、错误日志;
access_log /var/log/nginx/access.log main;
error_log /var/log/nginx/error.log warn;
#错误页；
error_page 404 /404.html;
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root /data/webroot;
}
}

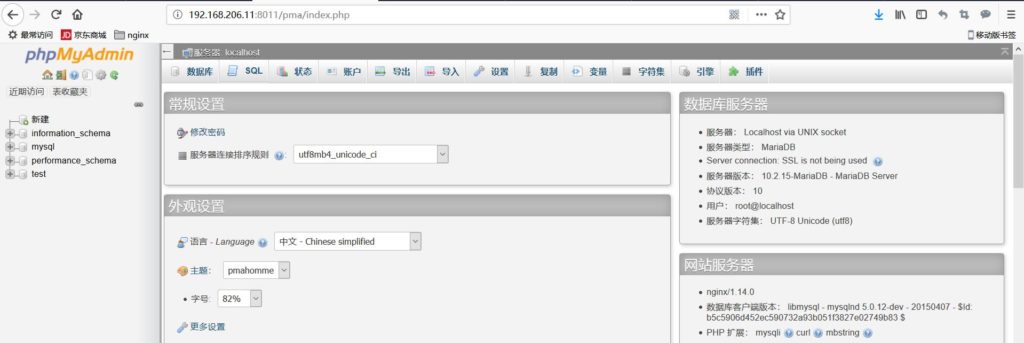

4、测试1，浏览器输入，http://192.168.206.11:8011/pma/index.php;
5、测试2，查看是否生成动态请求资源的缓存：
[root@node1 nginxweb]# ll /data/nginx/fastcgicache/ total 0 drwx------ 3 nginx nginx 16 Jun 20 14:30 1 [root@node1 nginxweb]# ll /data/nginx/fastcgicache/1/af/5/e251273eb74a8ee3f661a7af00915af1
